TE-Single mode TM-Single mode |

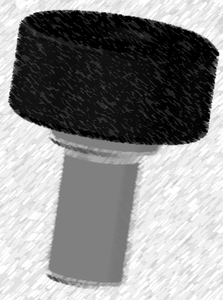

| Frequency Band/GHz | Er | F0/MHz | Qu | Tf/KHz(-40~85℃) | Structure |
| 0.7 | 45 | 784 | 24400 | ±25 |
|
| 0.9 | 45 | 905 | 19000 | ±50 |
|
| 1.1 | 45 | 1145 | 12000 | ±100 |  |
| 1.4 | 45 | 1434 | 1200 | ±100 |  |
| 1.9 | 45 | 1970 | 10000 | ±100 |  |
| 2.1 | 45 | 2160 | 11000 | ±100 |  |
| 40 | 2206 | 12000 | ±300 |  | |
| 2.6 | 40 | 2704 | 12000 | ±300 |  |
| 3.5 | 34.5 | 3560 | 18000 | ±300 |  |
| 5 | 34.5 | 4954 | 12000 | ±500 |  |
| 6 | 34.5 | 6200 | 13000 | ±500 |  |
| 7 | 34.5 | 7200 | 11500 | ±600 |  |
| 8 | 34.5 | 8100 | 11500 | ±600 |  |
| 11 | 28.5 | 11200 | 12000 | ±800 |  |

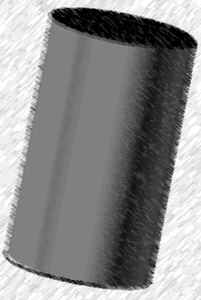

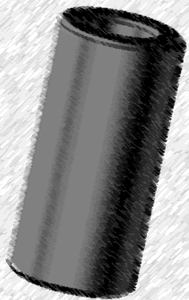

| Frequency Band/GHz | Er | F0/MHz | Qu | Tf/KHz(-40~85℃) | Structure |
| 0.7 | 46.5 | 746 | 5100 | ±100 |
|
| 0.9 | 46.5 | 863 | 10000 | ±200 |
|
| 1.8 | 46.5 | 1870 | 4400 | ±200 |  |
| 2.1 | 46.5 | 2258 | 4000 | ±200 |  |
| 2.6 | 37 | 2755 | 11000 | ±500 |  |
|
|
